A516 Gr 70 vs. 16Mo3: How to Select Pressure Vessel Steel for Low-Temperature Service and Hydrogen Environments

Selecting the right material for pressure vessels is a critical decision that impacts safety, longevity, and project cost. When your service conditions involve low temperatures or hydrogen-rich environments (like those found in refineries and petrochemical plants), the choice becomes even more complex.

Two of the most commonly debated grades in the industry are ASTM A516 Gr 70 and EN 10028-2 16Mo3. While they are both used in pressure vessel fabrication, they have distinct chemical compositions and mechanical behaviors that make them suitable for very different applications.

In this guide, we break down the differences between A516 Gr 70 and 16Mo3 to help you make an informed selection for your next project.

Understanding the Core Standards

Before diving into a direct comparison, it is essential to understand the “language” these steels speak.

• A516 Gr 70: This is an American standard under ASTM A516/ASME SA516. It is a carbon steel plate specifically intended for moderate and lower-temperature service with excellent notch toughness .
• 16Mo3: This is a European standard under EN 10028-2. It is a low-alloy steel containing Molybdenum (Mo), classified as a creep-resistant steel designed for elevated temperature service.

Chemical Composition: The Molybdenum Factor

The most significant difference lies in the alloying elements.

A516 Gr 70 is a straightforward carbon-manganese steel. Its chemistry is designed to provide a good balance of strength and toughness without the need for expensive alloying elements.

16Mo3 contains a deliberate addition of Molybdenum (0.25% – 0.35%) . This addition is the game-changer. Molybdenum dramatically improves the steel’s resistance to creep at high temperatures and enhances its corrosion resistance in certain environments.

Data compiled from industry standards and comparisons .

Mechanical Properties and Performance

1. Strength at Temperature

• A516 Gr 70: Performs well at room temperature and moderate temperatures. However, its strength degrades significantly as temperatures rise above 400°C.
• 16Mo3: Thanks to Molybdenum, it retains excellent yield strength and creep resistance at temperatures up to 500°C – 600°C . If your vessel operates continuously at high heat, 16Mo3 is the necessary choice.

2. Low-Temperature Toughness

• A516 Gr 70: This is where A516 shines. It is specifically engineered for low-temperature services. It typically undergoes Normalizing to refine the grain structure, ensuring high impact toughness at temperatures as low as -30°C to -46°C .
• 16Mo3: While it has decent toughness, it is not primarily designed for sub-zero conditions. Its impact energy is typically guaranteed at room temperature (+20°C) .

3. Resistance to Hydrogen Environments

This is a critical factor for modern petrochemical applications.

• For Wet H2S (Sour Service): If you are dealing with wet hydrogen sulfide (which causes Hydrogen-Induced Cracking), A516 Gr 70 is often the base material of choice—provided it is specifically manufactured with HIC testing. Suppliers can offer A516 Gr 70 that is vacuum degassed, has controlled chemistry (low sulfur, controlled manganese), and is tested to NACE TM0284 standards to guarantee resistance to HIC .
• For High-Temperature Hydrogen (Decarburization): In high-temperature hydrogen environments (like hydrotreaters), steel can suffer from decarburization and fissuring. The chromium and molybdenum content of 16Mo3 offers better inherent resistance to these high-temperature hydrogen attacks compared to plain carbon steel like A516 Gr 70 .

When to Use Which?

To simplify your procurement process, use this decision tree:

Choose A516 Gr 70 if:

• Low Temperature is the Concern: Your MDMT (Minimum Design Metal Temperature) is below -20°C and you need guaranteed Charpy V-Notch impacts .
• Wet H2S Service: Your project requires HIC (Hydrogen Induced Cracking) testing per NACE TM0284. A516 Gr 70 is a workhorse grade for this application .
• General Storage: You are building storage tanks, accumulators, or separators operating at moderate temperatures.
• Cost Efficiency: It is generally more cost-effective for standard pressure vessel applications where high heat is not a factor .

Choose 16Mo3 if:

• Elevated Temperatures: Your operating temperature consistently exceeds 400°C. 16Mo3 is designed for boiler parts, superheaters, and high-temperature piping .
• Creep Resistance is Mandatory: The design life depends on resistance to deformation under constant stress at high heat.
• High-Temperature Hydrogen: You need better resistance to high-temperature hydrogen attack (though for extreme cases, grades like 1.25Cr-0.5Mo or 2.25Cr-1Mo may be required).

Conclusion: Safety and Specification Matter

Both A516 Gr 70 and 16Mo3 are excellent steels, but they are not interchangeable. Selecting the wrong one can lead to premature failure or catastrophic safety risks.

• Don’t assume 16Mo3 can do the job of A516 in cold services.
• Don’t assume standard A516 Gr 70 can handle high-temperature hydrogen without proper alloying.

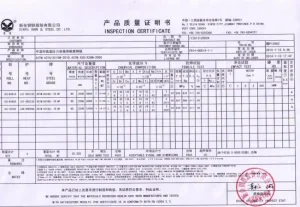

Ensure you source your plates from a reputable supplier who can provide EN 10204 3.1 or 3.2 certifications and, if required, HIC testing reports.
