ASTM A515/A515M

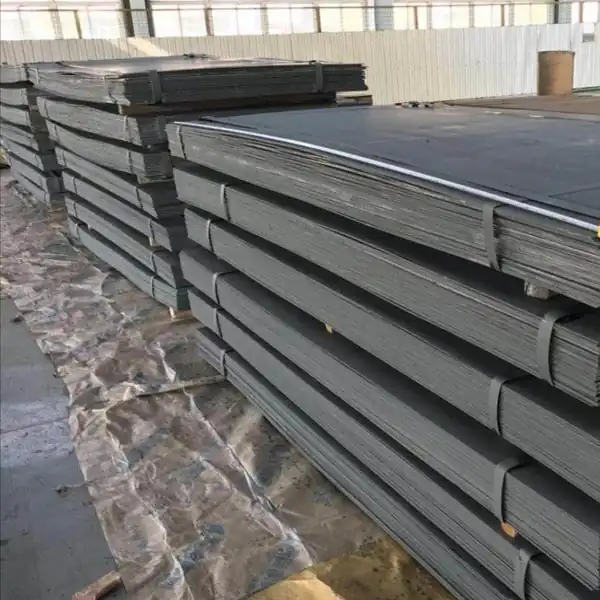

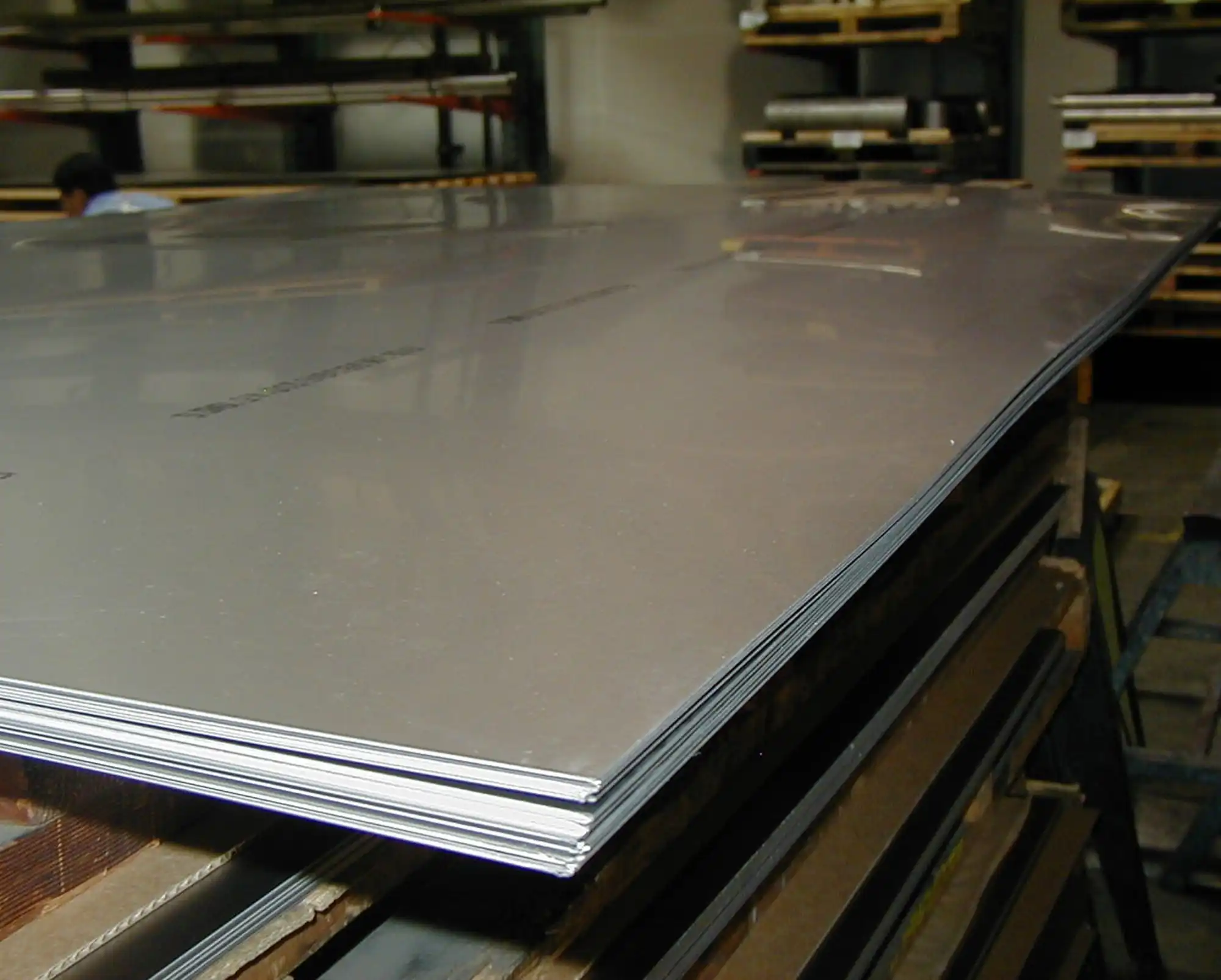

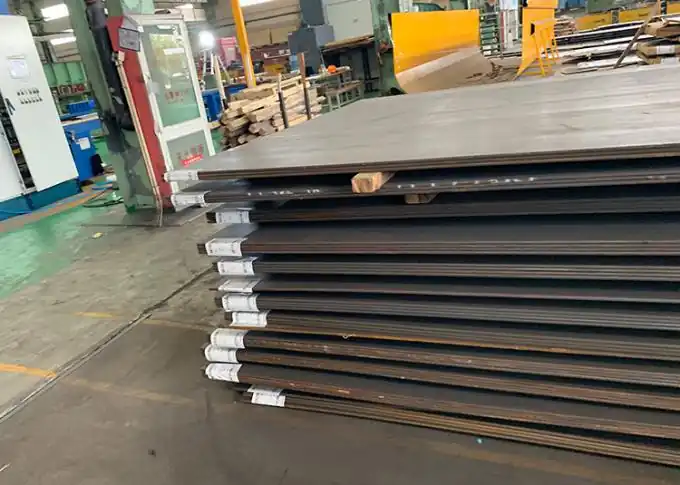

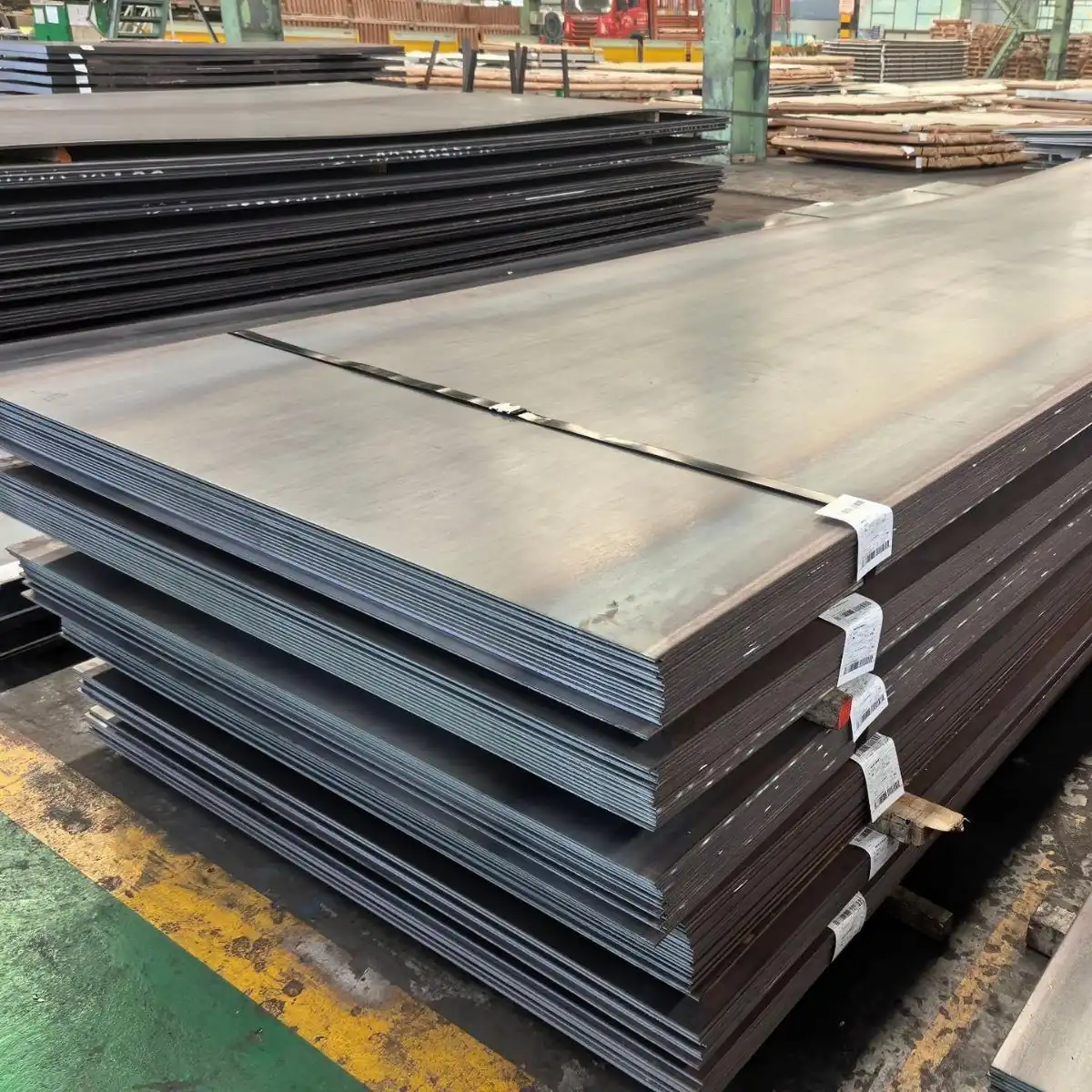

ASTM A515 Plate Steel is a carbon-silicon steel plates primarily for intermediate- and higher-temperature service in welded boilers and other pressure vessels. Plates are available in three grades having different strength levels: grades 60, 65, 70.The steel shall be killed and made to a coarse austenitic grain size practice. The steel shall conform to the chemical requirements specified.

Chat Now

Send Inquiry

Product Description

1.What are the chemical compositions and mechanical properties of ASTM A515/A515M?

Chemical Compositions (wt%)

Element	Grade 60	Grade 65	Grade 70
Carbon (C)	≤0.28	≤0.30	≤0.35
Manganese (Mn)	0.80–1.20	0.80–1.20	0.80–1.20
Phosphorus (P)	≤0.035	≤0.035	≤0.035
Sulfur (S)	≤0.035	≤0.035	≤0.035
Silicon (Si)	0.15–0.40	0.15–0.40	0.15–0.40

Mechanical Properties

Grade	Tensile Strength (MPa)	Yield Strength (min. MPa)	Elongation in 200 mm (min. %)	Elongation in 50 mm (min. %)
60	415–550	250	21	25
65	450–585	260	20	24
70	485–620	275	19	23

2.What are the characteristics of ASTM A515/A515M?

High-Temperature Performance: Silicon enhances strength and oxidation resistance at elevated temperatures.
Weldability: Moderate carbon content ensures good weldability with proper preheating and post-weld heat treatment.
Formability: Suitable for cold and hot forming processes (e.g., bending, rolling).

3.What are the application scenarios of ASTM A515/A515M?

Intermediate- and higher-temperature pressure vessels (e.g., boilers, heat exchangers).
Structural components in industrial settings requiring resistance to creep and thermal fatigue.
