HP325 Steel vs HP295 Steel: A Comprehensive Comparison

2026-04-03 | More News

Are you struggling to choose between HP325 and HP295 steel for your next gas cylinder project? Making the right material selection is critical to ensuring safety, durability, and cost-efficiency. This guide breaks down their key differences, performance capabilities, and ideal applications to help you decide confidently.

1. Core Overview: HP295 vs HP325 Steel

Both HP295 and HP325 are high-quality welded gas cylinder steels defined by the Chinese standard GB 6653 (equivalent to international pressure vessel steel specifications). The “HP” prefix stands for “Han Ping” (welded cylinder), while the numbers represent their minimum yield strength in MPa—295 for HP295 and 325 for HP325.

2. Chemical Composition: What Makes Them Unique

Both steels share a low-carbon, low-alloy design optimized for welding and formability, but HP325 incorporates higher manganese content to boost strength without sacrificing ductility.

Typical Chemical Ranges (by Weight %)

Element	HP295	HP325	Role in Performance
Carbon (C)	≤0.20	≤0.20	Low carbon ensures excellent weldability and avoids brittleness
Silicon (Si)	≤0.35	≤0.35	Enhances strength and oxidation resistance
Manganese (Mn)	≤1.00	≤1.50	Critical for HP325’s higher strength; improves hardenability and toughness
Phosphorus (P)	≤0.035	≤0.035	Controlled for low brittleness
Sulfur (S)	≤0.035	≤0.035	Minimized to prevent weld cracking
Acid-Soluble Aluminum (Als)	≥0.015	≥0.015	Refines grain structure for improved toughness

HP325’s higher manganese content (up to 1.5% vs. 1.0% for HP295) is the primary driver of its 10% higher yield strength, making it better suited for applications requiring pressure resistance beyond standard limits.

3. Mechanical Performance: Strength, Formability, and Durability

Mechanical properties are the heart of material selection—here’s how the two grades compare in real-world performance.

Key Mechanical Metrics

Metric	HP295	HP325	Impact on Application
Yield Strength	295 MPa minimum	325 MPa minimum	HP325 resists permanent deformation better under high pressure
Tensile Strength	440–560 MPa	490–600 MPa	HP325 offers greater ultimate load capacity for heavy-duty use
Elongation	≥26%	≥21%	HP295’s higher elongation makes it more formable for complex cylinder shapes
Cold Bend Test	D=2a (bend without crack)	D=2a	Both excel at cold forming; HP295 slightly easier to shape
Impact Toughness	≥27 J (room temperature)	≥27 J	Both offer reliable toughness for safe operation
Weldability	Excellent (low carbon equivalent)	Very Good (slightly higher CE)	HP295 is easier to weld; HP325 requires precise heat control

Critical Performance Notes

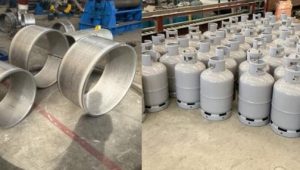

HP295 strikes a balance between strength and formability, making it the go-to for standard LPG, acetylene, and medical gas cylinders (≤500L capacity). Its lower cost and wider availability make it ideal for high-volume production.
HP325 delivers superior pressure resistance, making it the top choice for high-pressure cylinders (e.g., compressed natural gas, industrial gas storage) and heavy-duty applications where safety margins are critical. Its higher strength allows for thinner wall designs, reducing material weight and cost in some cases.

4. Application Suitability: Which Grade Fits Your Project?

The right choice depends on your cylinder’s operating pressure, capacity, and end-use environment.

HP295 Steel: Ideal For

Standard LPG cylinders (household, commercial)
Acetylene and oxygen cylinders (welding, medical)
Small to medium capacity cylinders (≤500L)
High-volume production lines where cost efficiency is key
Applications with moderate pressure requirements (≤150 bar)

HP325 Steel: Ideal For

High-pressure gas cylinders (CNG, hydrogen, industrial compressed gases)
Heavy-duty cylinders for industrial and automotive use
Large capacity cylinders requiring extreme pressure resistance
Critical safety applications (e.g., fire suppression systems, aerospace)
Thinner-wall designs to reduce weight without compromising strength

5. Manufacturing & Processing Considerations

Both grades are hot-rolled (or cold-rolled for precision) and delivered with strict surface quality controls, but processing requirements differ slightly.

HP295 Processing Advantages

Superior formability: Higher elongation makes it easier to stamp and shape into complex cylinder geometries
Simpler welding: Lower carbon equivalent reduces risk of weld porosity or cracking, ideal for automated welding lines
Consistent plate flatness: Minimizes production issues during cylinder spinning and forming

HP325 Processing Requirements

Precision welding: Requires controlled heat input to avoid brittleness in the heat-affected zone (HAZ)
Tight dimensional control: Thinner wall designs demand precise rolling to ensure uniform thickness
Quality inspection: Critical to verify mechanical properties (especially yield strength) to meet high-pressure standards

Common Specifications

Both grades are available in thicknesses of 1.5–12.0mm (HP295 up to 20mm) and widths of 500–2000mm, with hot-rolled or oiled surface finishes. GNEE Steel offers custom cutting to your exact dimensions, with fast lead times for both standard and specialized orders.

6. Cost vs. Performance: Making a Practical Choice

Cost is a key factor, but it should never compromise safety. Here’s how to balance both:

Cost Breakdown

HP295: 10–15% lower cost per ton than HP325, with lower processing costs due to easier welding and formability
HP325: Higher material cost, but potential savings from thinner wall designs (reduced material usage) and fewer rejections due to superior strength

Decision Framework

Choose HP295 if: Your cylinders operate at ≤150 bar, you need high-volume, cost-effective production, and safety standards are standard.
Choose HP325 if: Your cylinders operate at >150 bar, you need extreme pressure resistance, or safety is critical (e.g., high-pressure gas storage, automotive CNG tanks).

7. Why GNEE Steel? Your Trusted Partner for HP295/HP325

At GNEE Steel, we specialize in supplying high-quality HP295 and HP325 steel for global gas cylinder manufacturers. Here’s what sets us apart:

Our Commitment to Quality

Guaranteed Performance: All grades comply with GB 6653 and international standards, with full mechanical and chemical testing certificates.
Custom Solutions: We tailor dimensions, surface finishes, and delivery terms to your exact project needs—whether you need standard inventory or specialized orders.
Global Supply Chain: Fast shipping from major ports (Shanghai, Tianjin, Qingdao) with flexible delivery schedules to meet your production timelines.

Expert Support

Our team of material engineers can help you select the right grade for your application, optimize design for cost and performance, and provide technical guidance on welding and processing. We also offer bulk pricing for long-term partnerships, ensuring you get the best value without compromising quality.

Final Hook: Ready to Make the Right Choice?

Whether you need HP295 for standard cylinders or HP325 for high-pressure applications, GNEE Steel has the materials and expertise to support your project. Our one-stop solution includes custom cutting, fast delivery, and technical support to ensure your production runs smoothly and safely.

Contact our sales team today for a free material consultation, competitive quote, or sample request. Let’s work together to select the perfect steel grade for your next gas cylinder project—safety, performance, and value guaranteed!
