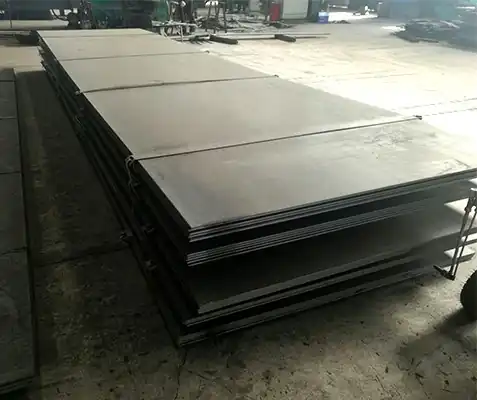

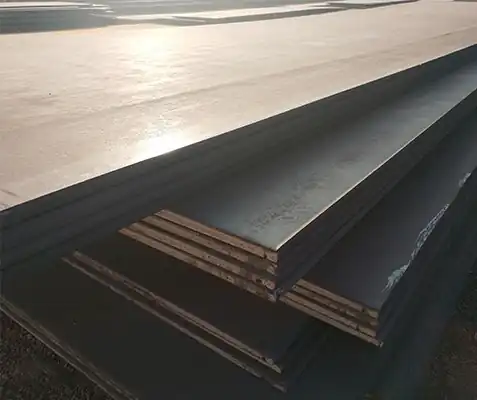

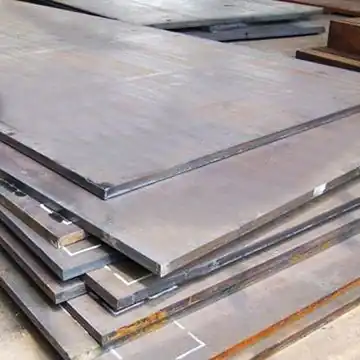

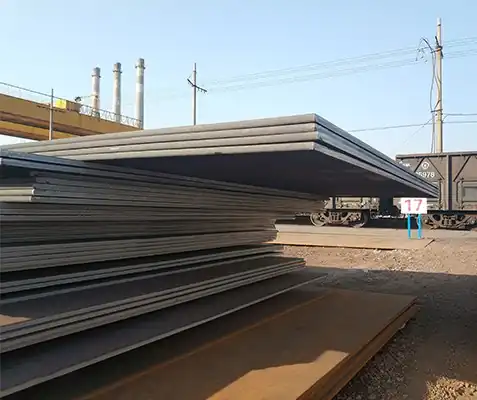

A516 Grade 70 for Heat Exchanger Steel Plate

ASTM A516 Grade 70 is a carbon steel plate, commonly used in pressure vessel and boiler fabrication, known for its strength, weldability, and notch toughness. It's a popular choice for applications in power generation, oil and gas, and chemical plants due to its reliability and versatility.

Chat Now

Send Inquiry

Product Description

1.What are the chemical composition of A516 Grade 70 for Heat Exchanger Steel Plate?

A516 Grade 70 Chemical Composition
Grade	The Element Max (%)
Grade	C	Si	Mn	P	S
A516 grade 70	0.27-0.31	0.13-0.45	0.79-1.30	0.035	0.035

2.What is the difference between A515 GR 70 and A516 GR 70?

Standard Purpose

A515 Grade 70: Used for pressure vessels in medium-to-high temperature environments(e.g., boilers, steam storage tanks), typically with non-corrosive or weakly corrosive media
A516 Grade 70: Designed for low-to-medium temperature environments, especially for pressure vessels with corrosive media(e.g., sulfur-containing crude oil, acidic gases), emphasizing resistance to hydrogen-induced cracking (HIC) and sulfide stress corrosion (SSC).

Typical Applications

A515 Grade 70: Power plant boiler drums, non-corrosive media storage tanks, heat exchanger shells.
A516 Grade 70: Refinery hydroprocessing units, natural gas treatment equipment, sulfur-containing crude oil storage vessels.

Core Design Objective

A515 Grade 70: Medium-to-high temperature strength stability
A516 Grade 70: Crack resistance (HIC/SSC) + toughness in corrosive environments

Media Compatibility

A515 Grade 70: Non-corrosive/weakly corrosive media (e.g., clean water, steam)
A516 Grade 70: Corrosive media (e.g., H₂S/CO₂-containing oil and gas)

Temperature Range

A515 Grade 70: Higher temperature (≤427°C)
A516 Grade 70: Broader temperature range (low-to-medium temperature, ≤343°C)

Cost

A515 Grade 70: Lower (relaxed compositional requirements)
A516 Grade 70: Higher (strict impurity control, requires additional impact testing)

3.What is A516 GR 70 steel equivalent to?

Country/Standard	Equivalent Material Grade	Key Characteristics
ASME (USA)	SA-516 Grade 70	Same as ASTM A516 Grade 70; intended for welded pressure vessels requiring notch toughness.
GB (China)	Q345R	Low-alloy high-strength structural steel for pressure vessels; similar tensile strength (≥490 MPa) but with slight compositional differences (e.g., Mn content).
EN (Europe)	P355GH	European standard steel for pressure purposes; meets EN 10028-2. Tensile strength: 510–680 MPa (close to A516 Grade 70’s 485–625 MPa).
JIS (Japan)	SB410	Carbon steel for pressure vessels (JIS G3115); tensile strength: 410–550 MPa (slightly lower than A516 Grade 70).
DIN (Germany)	HII (old standard)	Traditional carbon steel for boilers and pressure vessels; comparable to modern P265GH but with less strict toughness requirements.
ISO (International)	ISO 9328-2 Grade P355GH	Aligns with EN P355GH; specifies requirements for flat products of weldable fine-grain steels for pressure purposes.
BS (UK)	15Mo3 (old standard)	Low-alloy steel with molybdenum for improved creep resistance at moderate temperatures; not an exact match but used in similar applications.
