What material is equivalent to P460NH?

In global pressure vessel projects, material equivalency is critical for safety and compliance. What material is equivalent to P460NH?

As a professional pressure vessel steel plate manufacturer established in 2008, GNEE specializes in supplying P460NH and its equivalent materials for international energy, petrochemical, and heavy industry projects. With extensive export experience and strict quality control systems, we help clients select technically compliant and cost-effective substitutes when required by project standards.

Understanding the correct equivalent material to P460NH requires not only mechanical property comparison but also analysis of chemical composition, heat treatment condition, and applicable international codes.

What Is P460NH and Why Is Equivalent Material Important?

Before identifying the equivalent material to P460NH, it is important to understand the original grade.

P460NH is a normalized fine-grain steel for pressure purposes under EN 10028-3. It is widely used in:

• Pressure vessels

• Boilers

• Heat exchangers

• Oil & gas equipment

• Petrochemical reactors

Key characteristics of P460NH include:

• Minimum yield strength of 460 MPa

• Excellent impact toughness

• Good weldability

• Normalized delivery condition (N)

• Suitable for high-pressure applications

Because many international projects follow ASTM, ASME, or GB standards instead of EN standards, engineers often need to determine the most suitable equivalent material to P460NH.

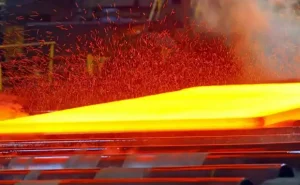

Factory production line – “P460NH plate rolling workshop”

EN Standard Equivalent Material to P460NH

Within European standards, P460NH itself is defined under EN 10028-3.

Closely related grades include:

• P460NL1

• P460NL2

These grades are similar in strength but differ in low-temperature impact testing requirements. When low-temperature performance is critical, P460NL2 may be required instead of P460NH.

However, within EN standards, there is no alternative grade that replaces P460NH with identical designation — it is already the defined strength level of 460 MPa in normalized condition.

ASTM / ASME Equivalent Material to P460NH

When converting from EN to ASTM/ASME standards, there is no 100% chemically identical equivalent material to P460NH. However, the closest mechanical property substitutes include:

• ASTM A537 Class 2

• ASTM A633 Grade E

• ASTM A572 Grade 65/70 (structural comparison only)

Among these, ASTM A537 Class 2 is generally considered the closest equivalent material to P460NH for pressure vessel applications.

Comparison highlights:

• A537 Cl.2 minimum yield strength: approx. 415 MPa

• P460NH minimum yield strength: 460 MPa

While A537 Cl.2 approaches the strength level, it does not fully match 460 MPa yield strength in all thickness ranges. Engineering approval is required before substitution in ASME-coded projects.

For ASME projects, designers may also consider SA537 Cl.2 with additional design adjustments.

Chinese Equivalent Material to P460NH

Under Chinese GB standards, the most recognized equivalent material to P460NH is:

• Q460R (GB 713)

Q460R is a pressure vessel steel plate with:

• Minimum yield strength around 460 MPa

• Similar mechanical performance

• Suitable for boiler and pressure applications

In many international export projects, Q460R is supplied as a practical alternative when EN-certified P460NH is not mandatory.

However, chemical composition and impact testing conditions must be carefully reviewed to ensure project compliance.

P460N Chemical Composition and Mechanical Property

How to Correctly Select an Equivalent Material to P460NH

When choosing a substitute, engineers must consider:

1. Yield and tensile strength requirements

2. Impact test temperature

3. Thickness range

4. Welding procedure qualification

5. Design code compliance (EN / ASME / GB)

6. Third-party inspection requirements

Material substitution without proper engineering validation can lead to compliance issues or safety risks.

As a professional steel plate manufacturer, GNEE provides:

• Full Mill Test Certificates (MTC)

• Third-party inspection (SGS, BV, TUV)

• Heat treatment documentation

• Technical consultation for substitution evaluation

Why Choose GNEE for P460NH and Equivalent Materials?

Established in 2008, GNEE is a comprehensive steel material manufacturer specializing in:

• Pressure vessel plates

• Alloy steel plates

• High-strength structural steel

• Customized cutting and processing

With over 150 employees and strong OEM & ODM capabilities, we have supplied P460NH and equivalent materials to clients in:

• Middle East

• Africa

• South America

• Southeast Asia

Our strict quality management system ensures full traceability from raw material sourcing to final delivery.

We understand international compliance requirements and provide professional export documentation support for global EPC contractors and fabricators.

Conclusion: Selecting the Right Equivalent Material to P460NH

Determining the correct equivalent material to P460NH requires careful comparison of strength, chemical composition, heat treatment, and project standards. While grades such as ASTM A537 Class 2 and Q460R are commonly used substitutes, final approval must align with engineering and inspection requirements.

If you are sourcing P460NH or its equivalent material for pressure vessel projects, GNEE is ready to provide certified steel plates, technical guidance, and competitive quotations.

Contact us today to discuss your specifications and receive a professional recommendation for the most suitable equivalent material to P460NH. Let GNEE support your project with reliable quality and global export expertise.
