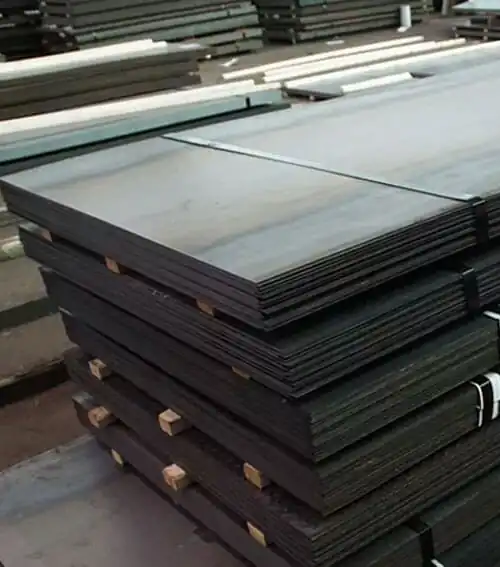

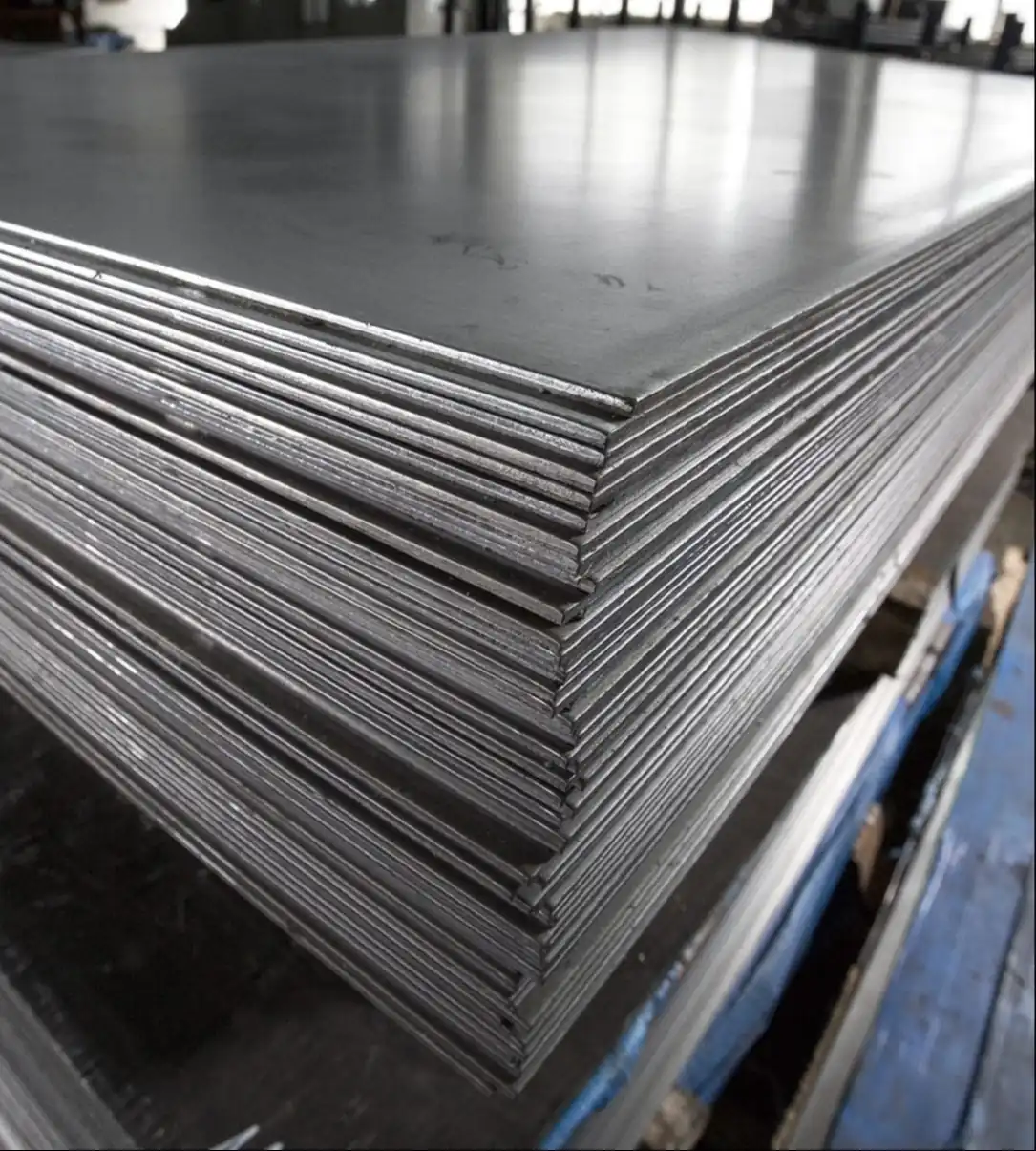

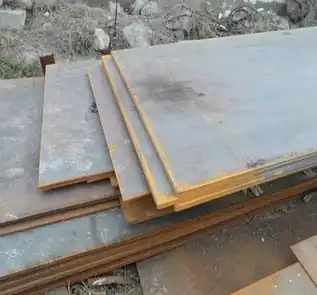

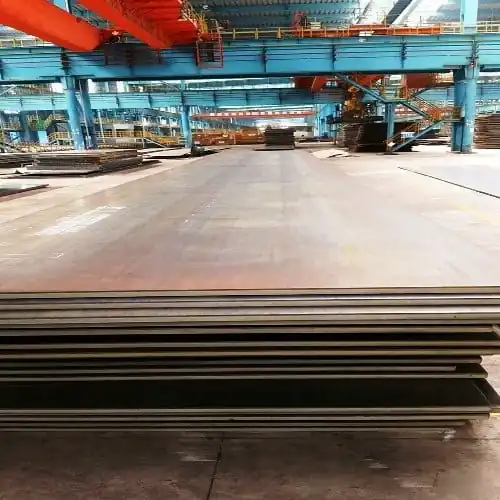

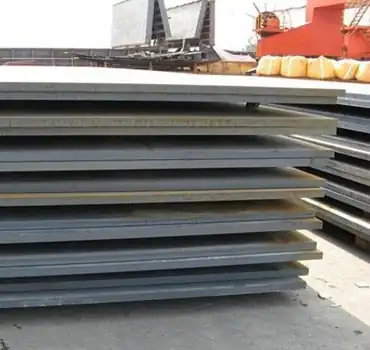

A387 Grade 11 Class 1 for pressure vessel

ASTM A387 Grade 11 Class 1 is a specific grade of chromium-molybdenum alloy steel plate used for welded boilers and pressure vessels, particularly in elevated temperature service. It's characterized by its 1.25% chromium and 0.5% molybdenum content, providing good strength and resistance to oxidation at high temperatures, according to Alloy Steel Plates and SSAB.

Chat Now

Send Inquiry

Product Description

1.What are the chemical composition and mechanical properties of A387 Grade 11 Class 1?

A387 Gr.11 CL.1Chemical composition
Grade	The Element Max (%)
Grade	C	Si	Mn	P	S	Cr	Mo
A387 Gr.11 C1.1	0.04-0.17	0.44-0.86	0.35-0.73	0.035	0.035	0.94-1.56	0.40-0.70

Grade	A387 Gr.11 CL.1Mechanical Property
Grade	Thickness	Yield	Tensile	Elongation
A387 Gr.11 CI.1	mm	Min Mpa	Mpa	Min %
	t≤50	240	415-585	22
	50	240	415-585	19

2.What is the difference between A387 Grade 11 Class 1 and Class 2?

Heat Treatment

Class 1: Typically normalized and tempered (air-cooled after heating above the critical range, followed by tempering) .
Class 2: Requires quenching and tempering (accelerated cooling, often via water or air blast, followed by tempering at ≥620°C) . This process enhances strength and toughness.

Mechanical Properties

Tensile Strength:Class 1: 415–585 MPa (60–85 ksi) ;Class 2: 515–690 MPa (75–100 ksi) .
Yield Strength:Class 1: ≥240 MPa (35 ksi) ;Class 2: ≥310 MPa (45 ksi) .
Impact Toughness:Class 2 often requires stricter impact testing (e.g., ≥100 J at 0°C for thin plates) , while Class 1 may meet lower standards (e.g., ≥27 J at room temperature) .
Hardness:Class 2 may specify lower surface hardness (e.g., ≤190 HB) for improved formability in critical applications .

Application Focus

Class 1: Ideal for moderate-temperature/high-pressure vessels(e.g., boilers, heat exchangers) where balanced strength and cost are priorities .
Class 2: Suited for high-stress, elevated-temperature environments(e.g., reactors, hydrogen-processing equipment) due to its superior creep resistance and high-temperature strength . It is often preferred in ASME BPVC-compliant designs requiring higher allowable stress values .

3.What is the delivery condition of A387 Grade 11 Class 1?

The delivery condition of A387 Grade 11 Class 1 (as specified in ASTM A387 for pressure vessel steel plates) is typically normalized and tempered (N&T).

This involves heating the steel to a suitable temperature above the critical range, followed by air cooling (normalizing) to refine the microstructure, and then tempering at a lower temperature to improve toughness and relieve internal stresses.

This heat treatment ensures the material meets the required mechanical properties for high-temperature service, such as creep resistance and strength, in compliance with ASME BPVC standards for pressure vessels.
